An integrated 4-port Ultranet distribution hub is included for direct connection to the company's P16-M personal monitor mixers without the need for any additional hardware. The compact unit features rugged protective bumpers and the option to be rack mounted using the included rack ears. A single shielded Cat 5e cable connects the stagebox, and up to three stageboxes can be cascaded together for a total of 48 inputs and 24 balanced outputs. An onboard Ultranet distribution hub provides power and 16 channels of audio to four of the company's Powerplay P16-M personal monitor mixers.
Overview
- 16 Midas-designed, fully programmable mic preamps for audiophile sound quality
- 8 analog, servo-balanced XLR outputs
- AES50 network ports featuring Klark Teknik's SuperMAC networking capability for ultralow jitter and latency
- 4-port ULTRANET distribution hub for powered connection of 4 Behringer P16-M personal monitoring mixers
- Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability
- Rack ears and protection bumpers included for installed and mobile applications
- Dual AES50 ports for cascading multiple units—no merger or router required
- Remote operation via shielded Cat 5e cable up to 330' length
- USB connector for system updates via PC
- Ultracompact and roadworthy, all-steel chassis
Remotely Controllable Preamps Make Setup a Breeze
The SD16 Stage Box is a studio/live sound engineer's dream come true. Setup is extremely easy, with virtually all parameter control taking place at the console, including the award-winning Midas-designed mic preamps, +48 V phantom power, destination routing, etc. Just put the SD16 where you want it, run a few Cat 5e, mic, and instrument cables and head for the console.
8 Servo-Balanced XLR Outputs
The SD16 features 8 XLR balanced outputs, allowing you to connect to your amp racks, active loudspeakers and monitors. Thanks to its reference-class Cirrus Logic 24-bit converters, SD16's digital operation eliminates even the slightest possibility of Radio Frequency Interference (RFI) and crosstalk.
ULTRANET Seamless Integration
The world-renowned engineers at Klark Teknik, Midas, Turbosound, and Behringer have all come together to create something truly innovative that will change your live and studio workflow forever. ULTRANET is a revolutionary technology that seamlessly transmits up to 16 independent channels of 24-bit digital audio and control data via a single shielded Cat 5e cable between compatible digital devices including mixers, I/O stage boxes, powered loudspeakers, and personal monitoring systems. Advantages realized through ULTRANET digital networking, versus traditional analog methods include: all audio signals are impervious to Radio Frequency Interference (RFI); signal crosstalk is eliminated, and ease of use translates directly into a significant amount of time saved during show setup or installation. And the SD16's onboard ULTRANET distribution hub supplies phantom power over Cat 5e directly to your P16-M Personal Monitoring Mixers, eliminating the need for external power adapters. ULTRANET effectuates a powerful digital eco-system that gives you unparalleled ease of deployment, performance, and control for Behringer P16 Personal Monitoring Systems and Turbosound iQ Speaker Series.
Box Contains
-

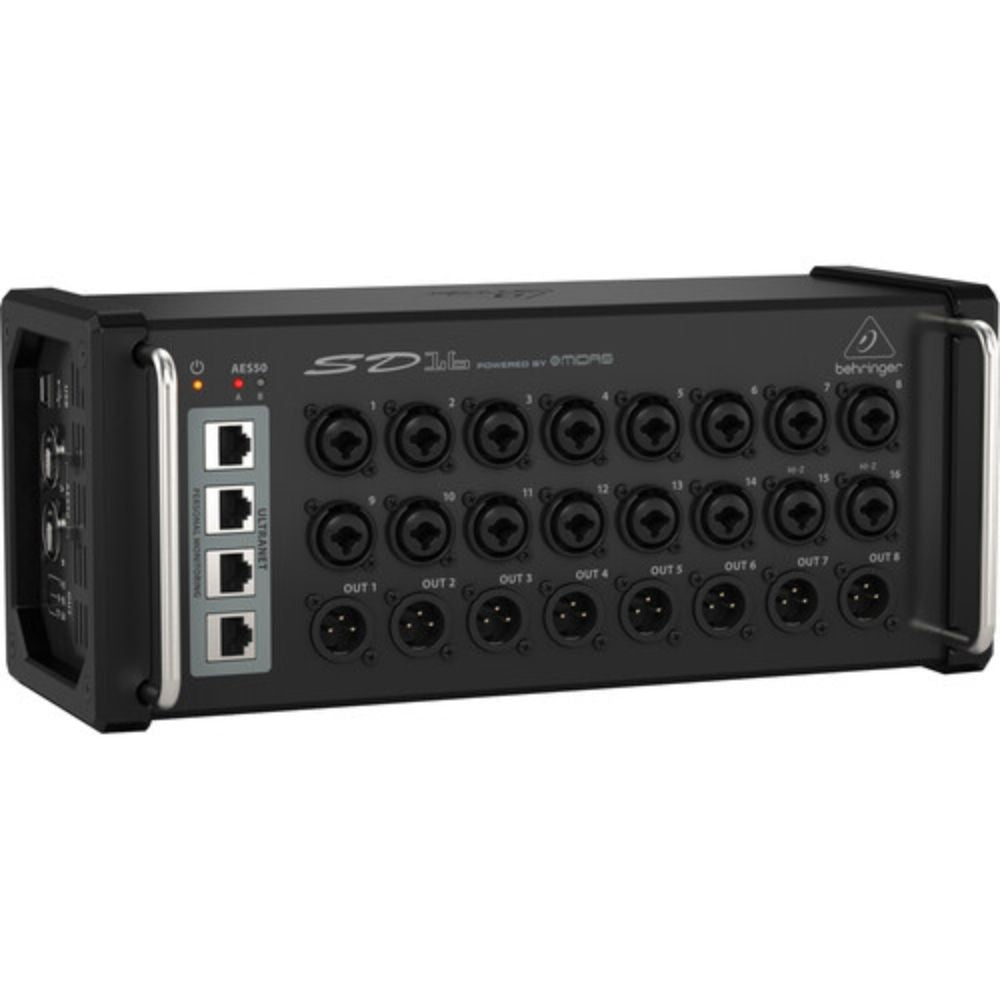

Behringer SD16 I/O Stage Box with 16 Preamps
- 1 x Power Cord
- Rack Ears
- Protection Bumpers
