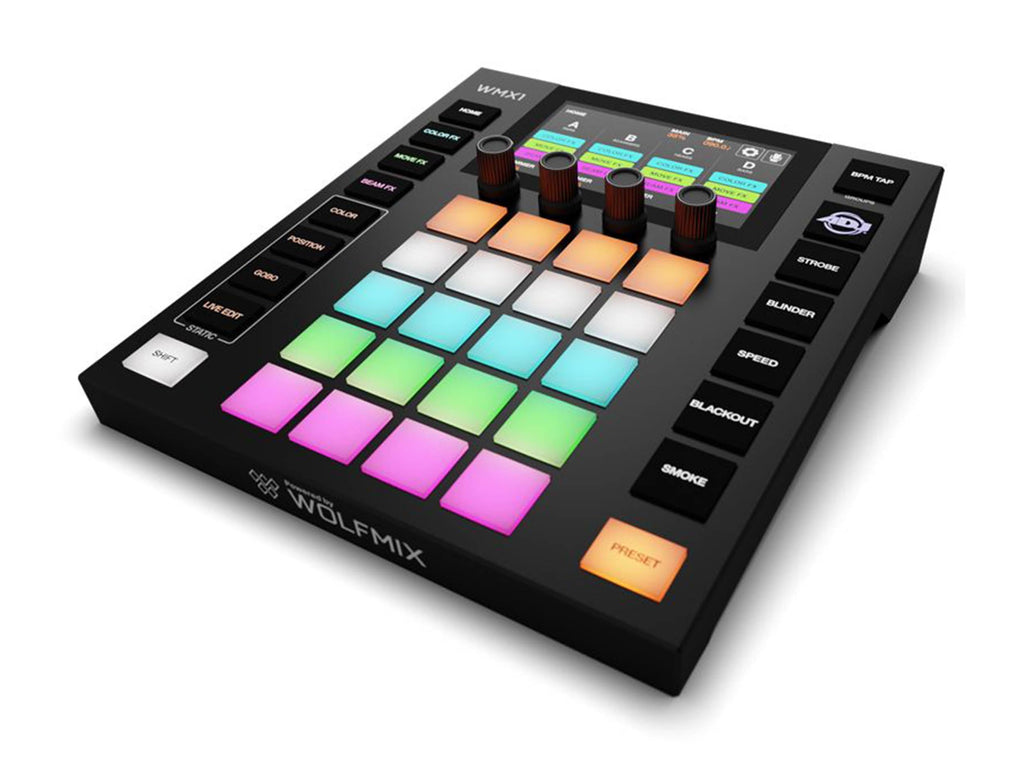

American DJ WMX1 Mk2 Wolfmix Standalone DMX Lighting Control System

Share:

Take control of your DMX lighting setup without a computer with the American DJ WMX1 Mk2 Wolfmix, a standalone DMX lighting control system that's designed with the performer in mind. The WMX1 Mk2 helps you create high-impact light shows on the fly and features an intuitive workflow, a powerful internal effect engine, and tactile controls that make it easy for anyone to control a DMX lighting rig comprised of multiple fixture types.

The WMX1 Mk2 features a 4.3" color touchscreen display, 37 backlit silicone buttons, 4 rotary controllers, and dedicated buttons for strobe, blinder, speed, blackout, and smoke. The interface provides easy selection, addressing, and grouping of fixtures with over 3500 onboard fixture profiles. Additionally, there are over 15,000 fixture profiles that are accessible through the supporting WTOOLS app. The WMX1 Mk2 includes a fixture builder, for creating custom profiles or for use with old or obscure fixtures. It also includes a Fixture Calibration Tool, which allows limiting the area covered by moving heads.

Set Up

Standalone (no computer needed)
Compatible with any DMX device
Standard unit comes with 2 DMX universes (up to 2 additional universes available via WTOOLS app)
Up to 680 fixtures and beams
Up to 50 fixture types
Up to 5000 fixture features (color/gobo, etc.)
8 fixture groups
6 projects
15,000+ available fixtures (3500+ on the controller)
DMX address, fixture order, and group setup
Use as a DMX splitter with DMX universe mapping

Palettes and FX

Color FX module with 8 effect types and 16 definable colors
Move FX module with 8 effect types
Beam FX module with 8 effect types
6 flash buttons for Special FX, Strobe, Blinder, Speed, Blackout & Smoke
Static color palette with 10 user-definable colors per group and gradient control
Static position palette with 5 user-definable positions per group with fade and fanning
Gobo palette with 5 user-definable gobos per group
20 namable live edit buttons with flash triggering and Park function
100 namable presets for storing snapshots with hold and fade timings
Preset playback cue list – all presets or per page of 20 presets

Control and Sync

Group and master dimming with encoder acceleration
Group Flash, Full, and Blackout
16-bit pan/tilt control
Multi-beam LED bar control
FX music pulse sync from microphone or line-in
FX BPM sync with Ableton Link, OS2L, or BPM TAP
Effect Speed, Phase, Order, Size, Fade, Fan, and Flick
Live control of move FX registration point
Global FX speed and freeze control
Map DMX IN with group dimmer and patch to output channels
WLINK to sync with another Wolfmix controller

Built-In Tools

Fixture Builder
Fixture calibration tool to limit the area of moving fixtures
XY touch-controlled positioning grid
RGBW touch-controlled color picker
8-step real-time sequencer for creating beam and move FX
Live view of DMX levels with default value override and DMX channel tester
Beam Editor to override Min and Max values used in generated FX

Other Features

Calibrate RGB, white, amber, and UV mixing with automatic fixed color-wheel translation
Automatically match similar gobos across different fixture types
Timed release flash and preset buttons
Fixture Flip function for reversing beam order
Fixture Split function for splitting up multi-FX bars
Lock the controller or lock editing with a password
Project and fixture backup with WTOOLS app
Offline 3D visualization with Easy View and WTOOLS over USB
Autorecovery of active project (no manual saving needed)
Import different fixture setups into the same project
Starts in under 2 seconds. Starts sending DMX in under 1 second
Factory firmware startup recovery mode for times of crisis

What's in the box

American DJ WMX1 Mk2 Wolfmix Standalone DMX Lighting Control System

USB Power Adapter
USB Cable
