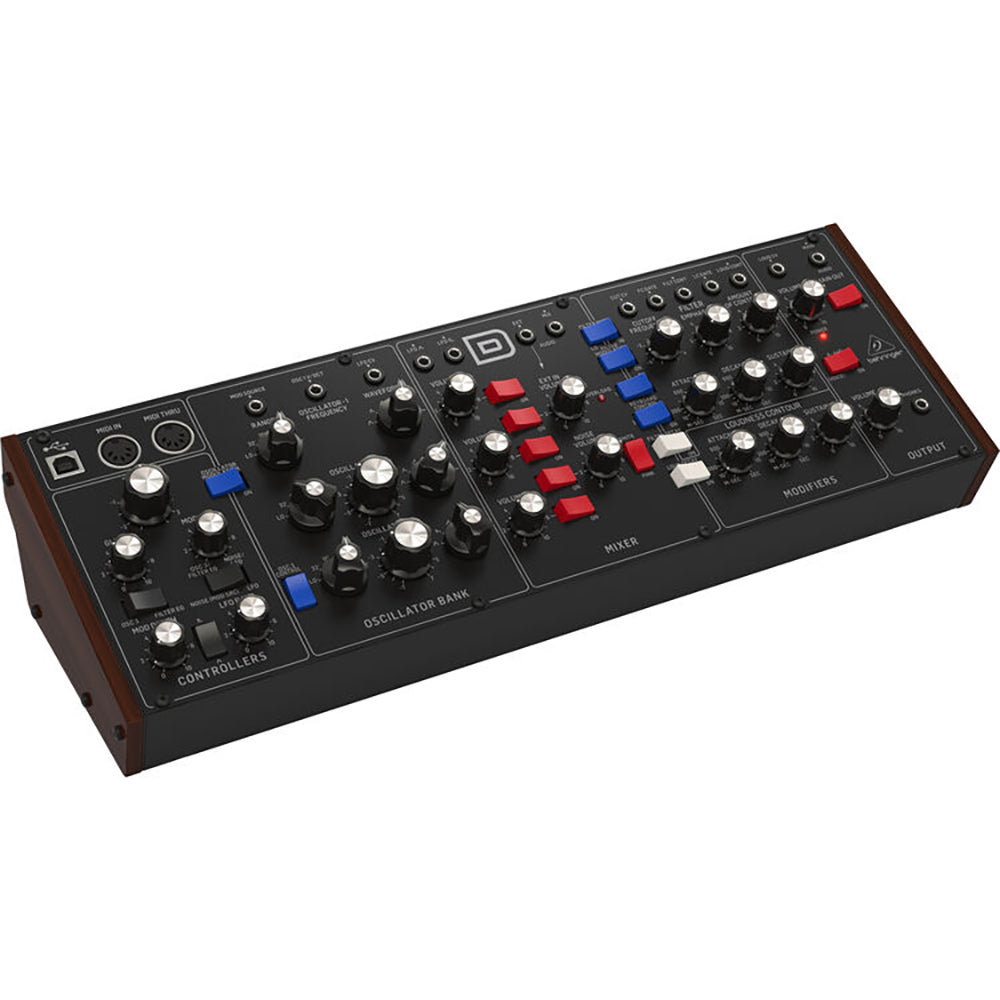

Behringer Model D Classic Analog Synthesizer Desktop Module (70 HP)
Share:
)
Add legendary mojo to your tracks with the Behringer Model D, a recreation of the original Moog Minimoog synthesizer with authentic circuitry featuring matched transistors and JFETs. The instrument sports an all-analog triple VCO, VCF, and VCA signal path for larger-than-life bass and lead tones. The three VCOs can be blended with an external input and a noise source (white and pink), while the classic Moog ladder filter can be switched between low-pass and high-pass, providing the highly coveted sound with cutoff and resonance controls.
There are CV and gate inputs and outputs for interfacing with external Eurorack gear. Up to 16 units can be polychained, allowing for up to 16-voice polyphony. The Model D is Eurorack compatible and can be removed from its desktop case and fitted into a standard Eurorack case (not included). A 12 VDC power adapter is included.
Overview
- Analog synthesizer with triple VCO design for fat bass and leads
- Authentic reproduction of original Moog Model D circuitry
- Ultra-high precision resistors and capacitors
- Pure analog signal path with VCO, VCF, and VCA designs
- 5 oscillator shapes with variable pulse widths
- Classic 24 dB ladder filter with resonance
- Switchable low-/high-pass filter mode
- Dedicated analog triangle/square wave LFO
- 16-voice Poly Chain for combining multiple units
- Semi-modular design requires no patching
- Overdrive circuit adds edge to your sounds
- Noise generator expands waveform options
- Eurorack-ready design for modular integration
- 48 controls for real-time parameter access
- External audio input for sound processing
- Low and high level outputs with high signal integrity
- Comprehensive MIDI implementation
True to Original
Great care has been taken in designing the Model D, including true-to-the-original circuitry with matched transistors, JFETs, precision resistors, and capacitors. This attention to detail gives the Model D its flexible sound-shaping capability, from fat bass and leads to stunning effects and otherworldly tones.
Big Fat Tones
Model D’s pure analog signal path with legendary VCO, VCF, and VCA circuits lets you recreate the classic sounds of the 1970s and ’80s or design new, original tones.
VCO Triple Play
Three voltage-controlled oscillators provide five waveforms each, adjustable across a wide 6-octave range. This flexibility allows for sculpting the perfect sound.
24 dB Ladder Filter and VCA
The highly flexible 24 dB Ladder Filter offers cutoff, resonance, and contour controls. Switchable low-/high-pass modes, ADS controls, and filter keytracking provide deep sound-shaping options. The VCA can be overloaded for added spice and edge.
Making Waves
Onboard modulators include Tune, Mod Depth, LFO Rate, Glide, and Mod Mix. Switches allow selection between waveforms, modulation sources, and noise types (pink or white).
16-Note Poly Chain Ready
While monophonic, the Model D’s Poly Chain function lets you combine multiple units for up to 16-voice polyphony.
Semi-Modular Design
Requires no patching for immediate performance. Connect via MIDI over DIN or USB and start exploring analog synthesis right out of the box.
Eurorack Ready
The Model D can be transferred into a standard Eurorack case for integration into modular systems.
What's in the box-
Behringer Model D Classic Analog Synthesizer Desktop Module (70 HP)
- 12 VDC Power Adapter
