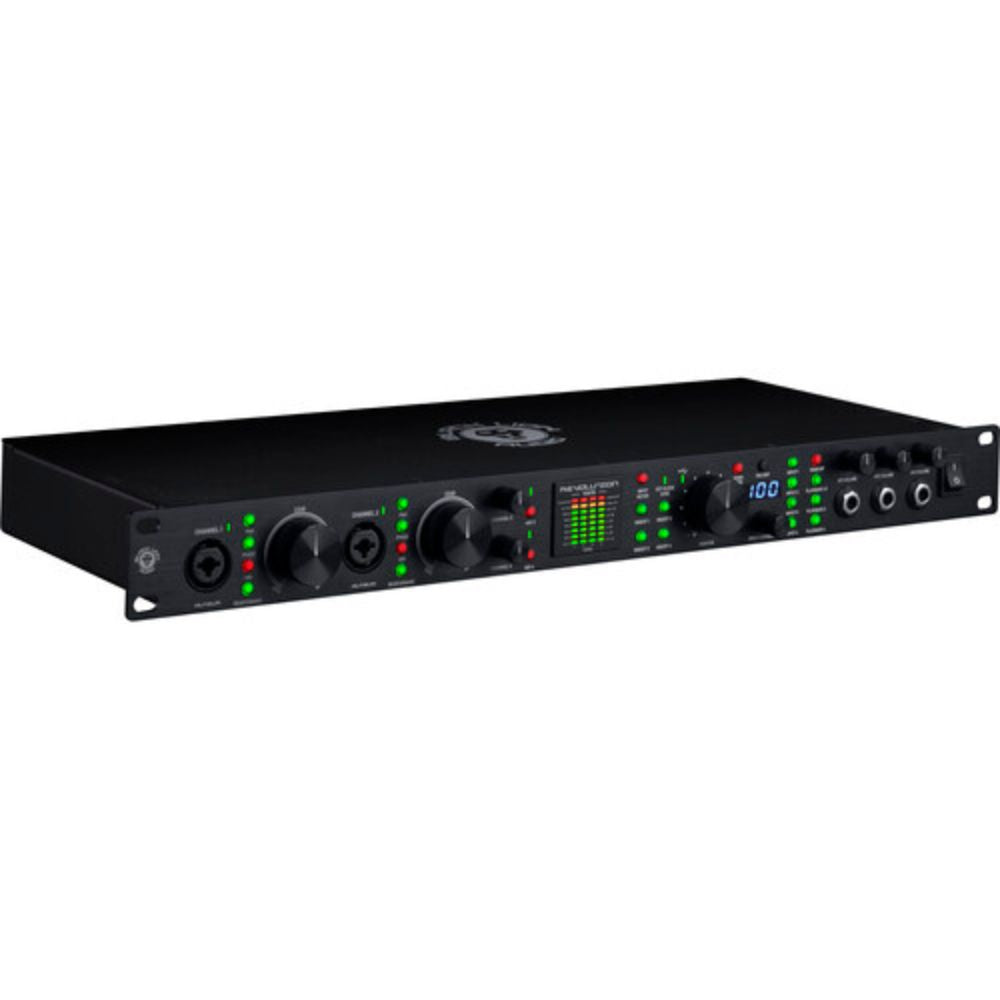

Black Lion Audio Revolution 14x16 USB-C Audio Interface
Share:
With the unique Mix Edit feature, users can craft custom headphone mixes across Revolution 14x16's three crystal-clear headphone amps. The interface includes four switchable send/return loops for integrating external hardware processors, and its proprietary Macro-MMC clock ensures world-class synchronization and low-noise conversion for your digital hardware. Expansion is made easy with ADAT I/O, allowing for the addition of up to eight extra channels. Bundled with a comprehensive software suite—including PreSonus Studio One+ DAW, and plug-ins from Sonarworks, Audified, and Psychic Modulation—the Revolution 14x16 offers a premium all-in-one solution for musicians, producers, creators, songwriters, and more.
Modded Out of the Box
- Proprietary PG-i filtering technology and highly filtered power rails work with full-circuit power decoupling to further reduce noise contamination.
- For the best possible capture and playback, Revolution 14x16 sports over two dozen high-end, hard-to-get Vishay, Wima, and Nichicon capacitors, and thin film resistors. (A component-sourcing nightmare but an audiophile's dream)
- All internal gain-staging is optimized for the lowest noise floor.
- All analog I/O is fully decoupled and balanced—right to the very core of the converter—for even further noise reduction.
- Power is decoupled across the entire circuit: the preamplifiers, the converters, the internal power, and even the clock.
Two Auteur Preamps Built-In
- Channels 1 and 2 of the Revolution 14x16 feature Black Lion Audio’s Auteur preamps, which until now have only been available in the company's standalone preamp hardware.
- Auteur preamps are transformer-coupled like classic consoles, with Cinemag transformers responsible for the added harmonic weight and saturation when pushed.
- At lower gain levels, you get the fast attack of American-style preamps, a fantastic complement for drums and rhythm guitar.
- Crank up the gain a bit, and you’ll get the warmth and color of classic British preamps, which can be particularly flattering on vocals and bass.
- You can access the Auteur preamps by connecting to either the front or rear Channel 1/2 inputs.
Premium Clocking
- The proprietary Macro-MMC (Master Music Clock) in Revolution 14x16 is based on the company's history of creating dedicated wordclocks, and modifying many embedded clocks found in other recording interfaces.
- Macro-MMC ensures the best possible performance from the converters while also allowing you to connect external gear via the BNC connections, for premium sync and ultralow jitter.
- This means that any devices synced via Macro-MMC are communicating as accurately as possible to minimize phase distortions that can muddy the high-end and negatively affect transients.
- If you’ve already invested in a clock you like, the Revolution 14x16 accepts clock in.
Powerful Connectivity and Expandability
- Easy to integrate into your existing setup, the Revolution 14x16 offers four mic/instrument (DI) preamps, with channels 1 and 2 accessible from either the front or back of the unit.
- You get 4 switchable insert/returns for connection to external hardware processors. You can A/B your signal at the touch of a button. The Return connections double as Line inputs for keyboards, synths, and other line-level devices.
- You can even use the Revolution 14x16 as a standalone mic preamp with no computer connection, thanks to the Insert/Return connections.
- A secondary set of user-definable Analog Outs let you route two analog signals wherever you like.
- S/PDIF connections round out the package for connection to digital devices, and the Revolution 14x16 is readily expandable with an additional 8-in / 8-out over ADAT.
Versatile Monitoring and Metering
- The interface's three crystal-clear, plenty loud headphone amps let you and your collaborators produce music without worrying about feedback from your mains. Use the intuitive Mix Edit feature to quickly create a dedicated low-latency headphone mix from both hardware inputs and software playback.
- The bright, eight-stage metering can be set to monitor Channel input levels, output levels, or even the input levels of the rear-mounted Channel Inserts. The main Monitor and Headphone Outputs are mono-summable.
Complete Software Suite
- PreSonus Studio One+ (90 days): Recording and music-production DAW, plus all the extras
- Sonarworks SoundID Reference for Headphones (90 days): Headphone calibration software
- Audified GK Amplification 3 LE: Bass amp modeler of legendary Gallien-Krueger amps and cabs
- Audified Mixchecker: Mix-checking plug-in with playback device emulations
- Psychic Modulation EchoMelt3: BPM-based modulation and echo
At a Glance
- 14-in / 16-out USB-C audio interface and word clock with ADAT and Auteur preamps
- 4 mic preamps / instrument-level (DI) inputs, 4 line-level channel inserts/returns
- Auteur preamps on channels 1 and 2
- 3 stereo headphone outs
- 2 stereo line outs
- S/PDIF I/O, ADAT, I/O, and wordclock I/O
- Headphone mixer for custom headphone mix of physical inputs and software playback channels
- Expandable with 8 additional inputs and outputs via ADAT
- Modded out of the box
- Software mixer for Windows with virtual channels and Loopback capability lets you reroute system audio to your DAW or app of choice
- Can serve as a standalone 4-channel preamp without a computer
- Independent +48V toggle on all XLR inputs
- Internal clocking with proprietary Macro-MMC technology
- High-end Vishay, Nichicon, and Wima capacitors, thin film resistors, and high-end ICs
- All inputs and outputs are fully decoupled and balanced
- Internal PG-i technology reduces noise contamination from external equipment
- Includes Revolution Software Suite
Box Contains
-
Black Lion Audio Revolution 14x16 USB-C Audio Interface
- Power Supply
