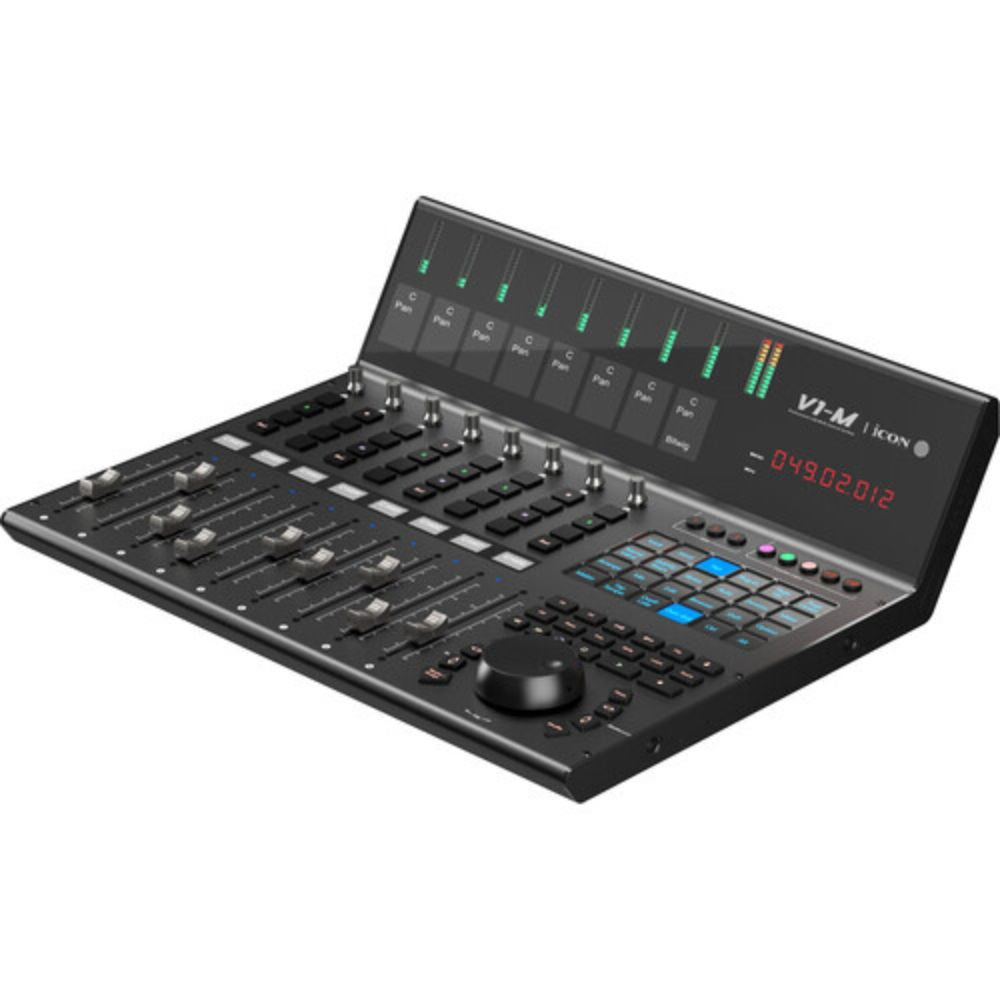

icon Pro Audio V1-M DAW Control Surface
Share:
A Powerful DAW Controller
- Hands-on control: the V1-M has eight channels of motorized faders, which can be expanded up to 64 channels (depending on your DAW) with the addition of optional V1-X DAW Control Expanders. This gives you plenty of control over your mix, even if you’re working on a complex project.
- Customizable touchscreen: the V1-M has a large, customizable touchscreen display with five color-coded layers of commands that can be used to control your DAW and match your specific workflow. This makes it easy to quickly access the controls you need, without having to take your eyes off the mix.
- TFT display and meter bridge: the large TFT display and meter bridge show the current levels, pan positions, and other information. This makes it easy to see what’s going on with your mix, even if you’re not looking at the computer monitor.
- Integration with popular DAWs: the V1-M is compatible with a wide range of popular DAWs, including Bitwig, Cubase/Nuendo, Logic Pro X, Ableton Live, and Pro Tools. Additionally, you can run up to three DAWs at one time with no interruption to your workflow.
Recording and Mixing
The V1-M's motorized faders and touchscreen display make it easy to navigate through large sessions. You can quickly zoom in and out of the session, and you can easily see the levels and pan positions of your tracks with the large TFT screen and meter bridge. This allows you to use your ears for recording and mixing, not your mouse.
Content Creation
You can use the faders, knobs, buttons, and touchscreen to adjust the levels, pan positions, and other parameters of your tracks. Customizable control means you can put your most used commands right where you want them, helping you create engaging content quickly and efficiently.
Music Production
The V1-M can help you to stay creative. The touchscreen display and motorized faders give you a tactile experience that can help you to feel more connected to your music. The V1-M's customizable controls also allow you to set up your controller the way that works best for you.
Expandable for Large Mixes, Postproduction, and Sound Design
Expand your V1-M to 16, 32, or even 64 channels—depending on your DAW—with the V1-X DAW Control Expander. This can be especially helpful when you're working on a complex project with a lot of dialog tracks or Foley sounds, or if you're designing lush soundscapes or creating new worlds.
Each V1-X houses eight touch-sensitive motorized channel faders with 12-bit resolution, eight dual-function encoder knobs, mute, solo, select, and record buttons, plus an TFT display showing channel names and different control parameters for each channel. It also includes LED level meter bridge in a robust metal casing and a second LCD display. (Expandability is totally dependent on your Digital Audio Workstation. Please consult your DAW's manual to determine how many extenders your DAW allows.)
At a Glance
- Nine touch-sensitive, motorized faders with 12-bit resolution
- Large, programmable 7", 24-panel digital touchscreen display showing DAW functions per five color modes—a potential total of 120 displayable and actionable functions
- Organize DAW functions in the 24-panel touchscreen easily via drag and drop in the iMAP—changes made in real time
- Capability of connecting to three DAWs at one time via the DAW select buttons
- Extremely durable and versatile
- Onboard 2" TFT display, showing channel name, control values, channel colors, etc. (DAW dependent)
- Attractive, modern meter bridge, featuring precise, clear, and eye-catching LED meters
- Additional lower 1.14" TFT display for each channel (some DAWs are equipped to display additional information on this screen)
- Extremely high-quality, large optical encoder jog wheel with very precise, smooth control, for fast search, scrub, etc.
- Eight smooth-action, dual-function encoder knobs (Rotate and Enter)
- Two-segment LED display shows timecode or location of your project in either SMPTE or beat clock (bars:beats:ticks) formats
- Illuminated function buttons for Read, Write, Touch, Latch, Trim, and Off—activated/deactivated as required per DAW
- Illuminated buttons for channel control, including Mute, Solo, and Record
- Six illuminated transport buttons including Play, Stop, Record, Rewind, Fast Forward, and Loop
- Dedicated Master/Assign button, for quick switching the master fader from the master channel to a pre-designated track
- Illuminated Zoom button with 2-D directional keys (Left/Right and Up/Down), also used in combination with the jog wheel
- Illuminated Focus button, which allows the user to focus in and adjust plug-in, EQ parameters, and more via the smooth-action jog wheel
- Two illuminated Track buttons, for selecting individual channels
- Two illuminated Bank buttons, for shifting eight channels at a time
- Supports Universal Mackie Control and HUI protocols, for seamless integration with compatible music production software
- Supports Ability, Audition, Ableton Live, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer, FL Studio, Mixbus 32C, Pro Tools, Logic Pro, Luna, Reaper, Reason, Samplitude, Studio One, and Tracktion Waveform
- iMap software downloadable from the product page
- USB-C high-speed connectivity
- Firmware upgrade available via USB-C connection and iMap software
- User A and User B 1/4" inputs, for connecting footswitch pedals
- Class-compliant with MacOS 10.15 or above and Windows 10 or above
- Superior build quality and robust metal casing with Kensington lock port
Box Contains
-
icon Pro Audio V1-M DAW Control Surface
- 1 x USB-C Cable
- 1 x Power Adapter
