PreSonus StudioLive 16R 18-Input, 16-Channel Series III Stage Box and

PreSonus StudioLive 16R 18-Input, 16-Channel Series III Stage Box and Rack Mixer

Share:

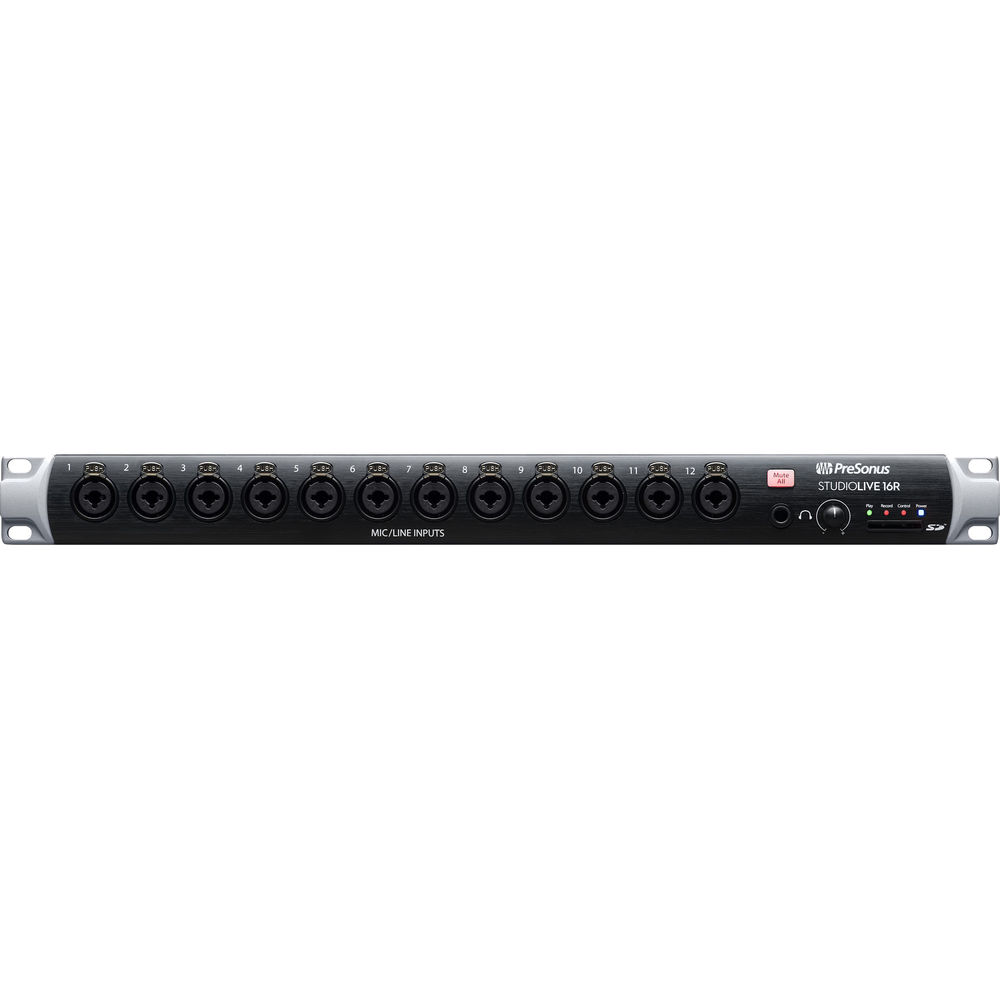

The PreSonus StudioLive 16R is a Series III, 16-channel 1 RU stagebox and rack mixer designed to serve as a simple stage box, rack mixer, or combination stagebox and monitor mixer. The 16R is equipped for AVB networking, allowing it to be connected to another Series III mixer via a single, lightweight Cat 5e or Cat 6 Ethernet cable, eliminating the need for heavy, expensive copper snakes, and the signal degradation caused by long cable runs. All the onboard XMAX microphone preamps can be remotely controlled from the front-of-house position. In stage box + monitor mixer mode, the StudioLive 16R not only serves as a professional networked stage box, but is a full-blown monitor mixer with advanced processing and mixing power.

The StudioLive 16R offers professional-quality sound with its on-board Series III processors and 3rd generation Fat Channel, which implements a plug-in-style workflow that features vintage-style EQ and compression options on every channel, from classic tube limiters to passive EQs. In addition to channel processing, the StudioLive 16R offers 6-band, fully parametric EQ on all mix outputs. There are six FlexMixes that can be individually designated as aux, subgroup, or matrix mixes, while eight Filter DCAs offer easy and flexible control over groups of channels.

There are 16 combo XLR-1/4" inputs (mic/line) and an additional set of stereo RCA inputs for flexibility. The six FlexMix outputs feature 1/4" TRS connectors, while the main output offers balanced XLR connectors. A built-in SD card recorder allows you to quickly and easily record the main mix or any other stereo mix without the need for a computer. What's more, you can simultaneously multitrack record to your laptop via USB or AVB and record in stereo to SD.

The StudioLive 16R ships with an integrated software package including Studio One Artist, UC Surface, and Capture. Studio One Artist is a full-featured DAW for recording, mixing, and playing back tracks. The software offers remote control over the XMAX preamps and the Fat Channel processing. UC Surface offers touch-control for Mac, Windows, Android, and iPad, allowing you to control the mixer wirelessly from anywhere in the room, while Capture allows you to completely automate virtual soundchecks and record shows. Additionally, the StudioMagic plug-in suite is included, which provides a wealth of fresh sounds and effects from companies such as Eventide, Lexicon, SPL, MAAG, Brainworks, and Arturia. The StudioLive 16R ships with a power cord and a USB cable.

PreSonus Metro, Live Remote Mixing

PreSonus Metro is the latest innovation for StudioLive Series III mixers, delivering a first-to-market solution for live remote mixing over the Internet with high-quality low-latency audio streaming. With Metro, anyone anywhere in the world can connect to a StudioLive Series III mixer over the Internet and remote control the mixer using UC Surface while listening in real-time with their local audio device. For existing customers, a free firmware update with Metro is available from the PreSonus website.

Inputs and Outputs

18 total inputs
16 mic/line channel inputs + 2 RCA inputs
6 x 1/4" TRS FlexMix outputs
2 x XLR (L/R) main outputs
Stereo headphone output

Channels and Buses

16 input channels
1 stereo digital return (SD Card, AVB, or USB)
10 buses:

6 FlexMixes (can be designated as aux, subgroup, or matrix mixes)
2 internal effects sends
Stereo main bus

6 Filter DCAs for easily and flexibly controlling groups of channels

Networking Connections

1 Ethernet control network port
Dynamic, self-assigned, and manual IP address modes
1 Ethercon AVB audio network port

Recording

On-board stereo SD recorder
18 x 18 USB recording interface
32 x 32 AVB recording interface

Signal Processing

Intuitive Fat Channel signal processing on every channel with:

A/B settings comparison
High-pass filter and polarity reverse
Gate/expander with sidechain
Compressor with sidechain
4-band parametric EQ on inputs
6-band parametric EQ on outputs
Limiter
Delay on every input
Delay on every output
Professionally programmed library of presets
Vintage EQ and compressor models available on every input:

Passive EQ
Vintage EQ
Tube compressor
FET compressor

8 x 31-band graphic EQs
2 internal effects buses: Combination of reverbs and delays with modern and vintage options
Built-in real-time analyzer

Scenes and Presets

Create, save, and edit up to 100 scenes
Scene management with:

Scene Safe—prevents a scene change from affecting designated “safe” channels
Create, save, and edit channel settings and copy/paste between channels
Advanced channel preset options can save and recall:

Channel type and name
Input settings (preamp, +48V phantom power, polarity, pan)
Fat Channel A & B settings
Bus assignments
Aux and effects send levels and pan
Select button color

8 Quick Scenes
8 Mute groups

Digital

Studio-quality converters with 115 dB dynamic range
48 kHz operation with 24-bit resolution (44.1 kHz option coming soon)

Actively Integrated Software

UC Surface touch control software for Mac, Windows, iPad, and Android
Studio One Artist digital audio workstation software for Mac and Windows
Capture multitrack recording software for Mac and Windows
QMix-UC aux-control software for iOS and Android available free from Apple App Store and Google Play

What's in the Box

PreSonus StudioLive 16R 18-Input, 16-Channel Series III Stage Box and Rack Mixer

1 x USB Cable
1 x Power Cord
1 x Software Authorization Card
